INDGW-M2

Eaton's INDGW-M2 will be discontinued and has been upgraded to the new Industrial Gateway card (INDGW-M3).

The INDGW-M2 has been upgraded to the INDGW-M3!

The Eaton INDGW-M2 will reach end-of-life status by the end of 2025 and will be fully upgraded by the INDGW-M3, offering the same form, fit and function. Cybersecurity certifications and updates for the INDGW-M2 will be supported for the warranty period of the host device or applicable service contract. Firmware for INDGW-M2 will not be cross compatible. INDGW-M3 will be backwards compatible with all legacy INDGW-M2 Eaton products.

Learn more about INDGW-M3

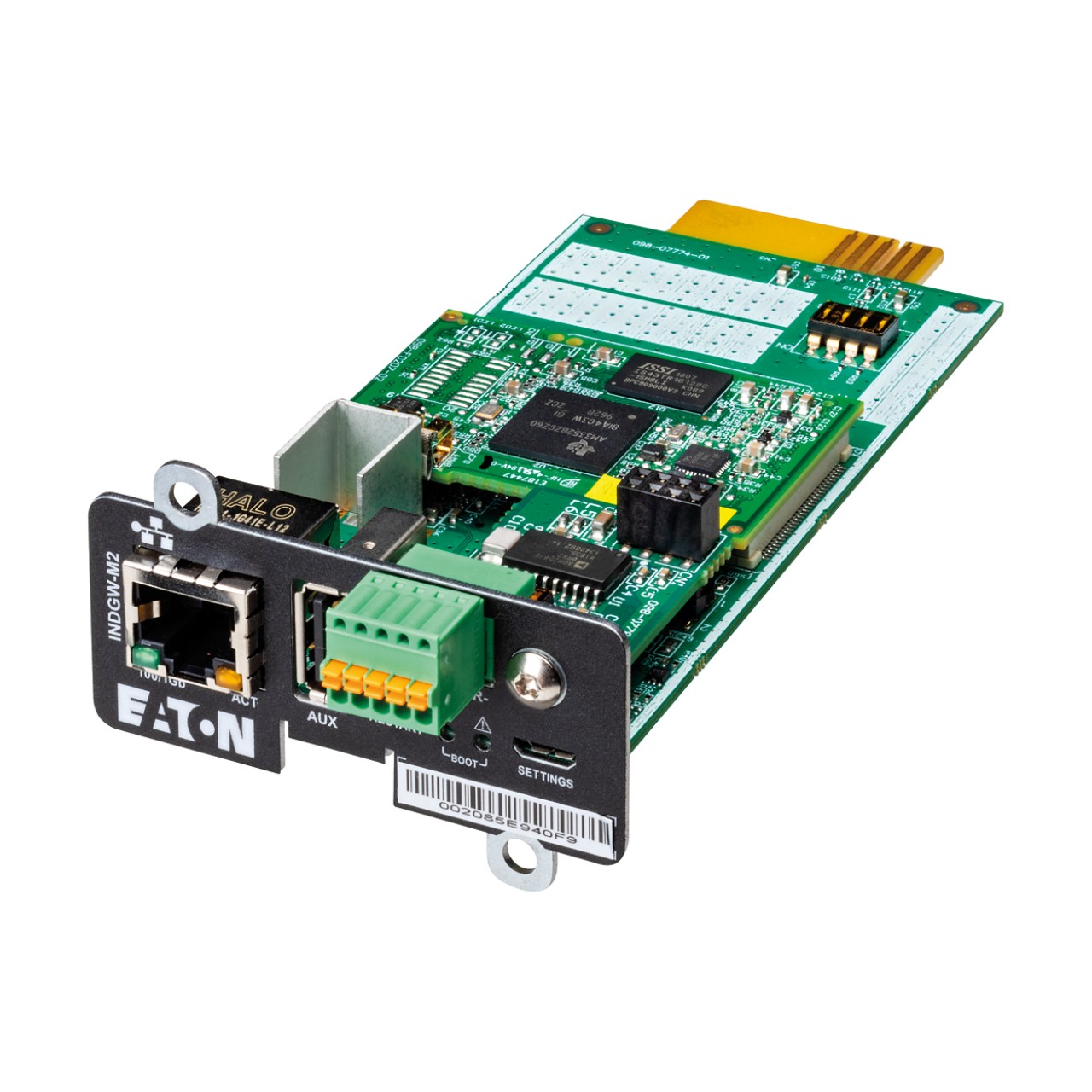

Eaton Industrial Gateway Card INDGW-M2 left angle view

Watch video on cybersecurity benefits

Eaton's Gigabit Network Card and Industrial Gateway Card are the first UPS connectivity devices to meet both UL 2900-1 and IEC 62443-4-2 cybersecurity standards.

How Eaton collaborates with UL

Technical specifications

Function

Modbus / Facility

Web/SNMP

UPS supported

5P, 5PX, 9PX, 9PXM, 9SX, 93PM, 93E, 9395XC

Catalog number

INDGW-M2

Part number

744-07774

Protocol support

HTTPS, TLS 1.2, SNMPv1, SNMPv3, NTP, TFTP, SMTP, SMTPS, BOOTP, DHCP, SLAAC, SSH, MQTTS, ModbusTCP, Modbus RTU, BACnet IP, BACnet BBMD

UPS slot type

Mini-Slot

Network support

Ethernet 10/100/1000BaseT

Temperature and humidity monitoring

Yes, with environmental monitoring probe Gen 2 (catalog number: EMPDT1H1C2, part number: 744-A4026)

Software support

Intelligent power manager 1.61 and higher, intelligent power protector 1.61 and higher, any SNMP compliant network management system (NMS)

Supported MIB

MIB II – Standard IETF UPS MIB (RFC 1628) – Eaton xUPS MIB

O/S supported for shutdown

Microsoft Windows, UNIX, and Linux

Local language support

English, French, German, Italian, Spanish, Chinese simplified, Chinese traditional, Japanese, Russian

Operating temperature

32 to 104°F (0 to 40°C)

Operating humidity

90% RH max. without condensation

Power input

5 to 12V

Current consumption

500/1000mA max. depending on UPS

Dimensions (H X W X D)

5.2 x 2.6 x 1.7 in. (132.08 x 66.04 x 43.18 mm)

Weight (OZ.)

2.5

Regulatory

Same as UPS

Explore INDGW-M2 resources
