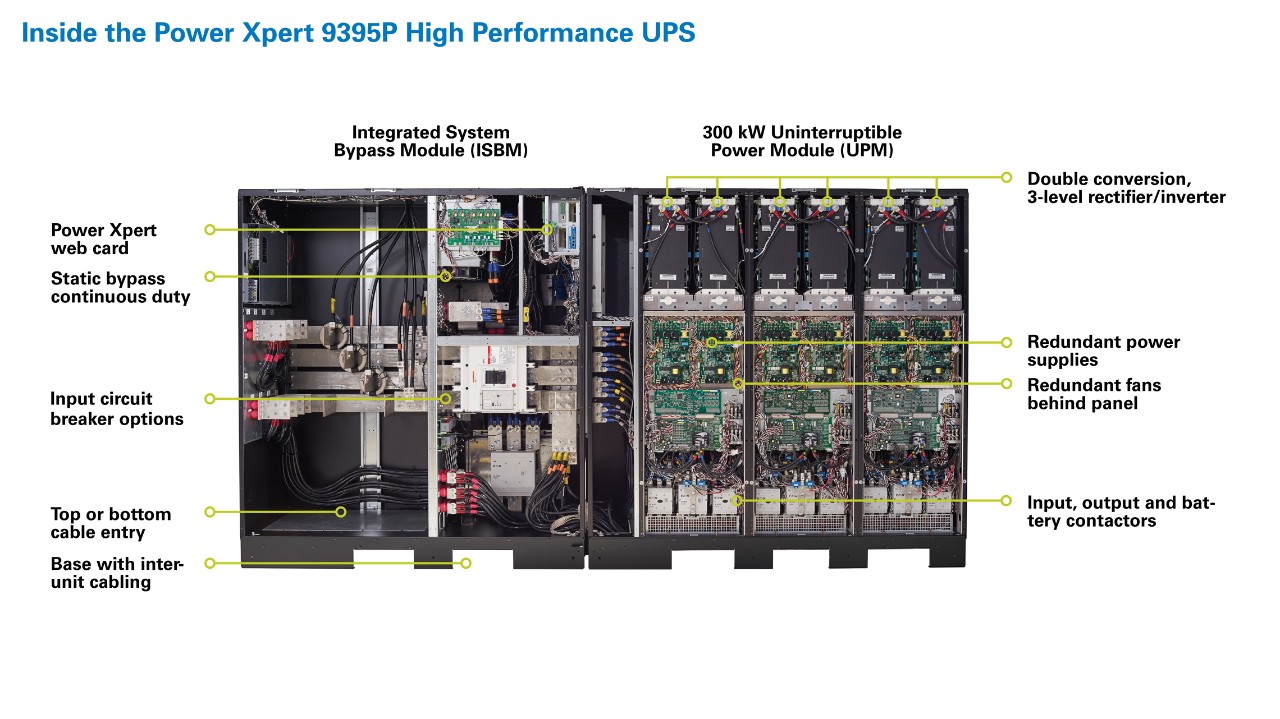

Eaton's Power Xpert 9395P UPS builds on the reputation of reliability of the Eaton 9395 UPS family with up to 20 percent more power than the original Power Xpert 9395, all within the same footprint. The 9395P’s three-level converter topology operates components at less than half the stress of a conventional converter, which reduces energy losses and allows for higher power efficiency. The cost reduction is so great that replacing an older generation UPS with a Power Xpert 9395P UPS allows you to pay back the price of the UPS in 2 to 3 years.
● Reduces power and cooling
● Conserves valuable data center floor space
● Reduces cost and unexpected future growth risks
| UPS rating (1.0 power factor) | |
| kVA | 200, 250, 275, 300, 400, 500, 550, 600, 675, 750, 825, 900, 1000, 1100, 1200 |
| kW | 200, 250, 275, 300, 400, 500, 550, 600, 675, 750, 825, 900, 1000, 1100, 1200 |
| General characteristics | |

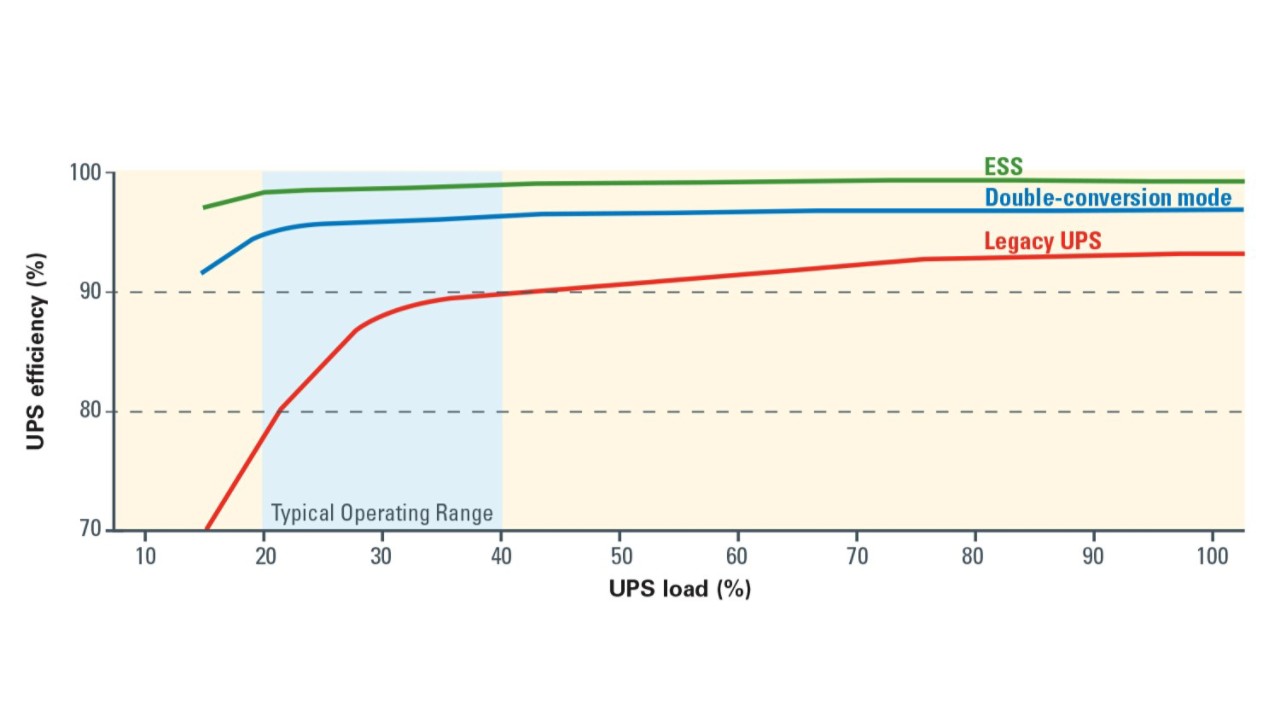

| Efficiency | 99% with Energy Saver System Up to 97% (480V) and 96% (600V and 400V) in double-conversion |
| Parallel capability | 4 UPS units maximum for distributed bypass and 8 UPS units maximum with SBM |
| Max modules per size | Up to 2 modules 300 kW Up to 3 modules 600 kW Up to 4 modules 900/1200 kW |
| Audible noise | As low as 75dBA @ 1 meter* |
| Altitude (max) | 1000m at 40 degree C (104 degree F) 1000m at 35 degree C (95 degree F ) when UPM capacity is above 275 kW |
| N+1 redundancy capable | Yes |
| Field upgradeable | Yes |
| System bypass module | Included |
| Control panel (LCD) | Color touchscreen |
| Battery startup | Standard |
| Frequency conversion | Standard |
| Multi-language | Standard |
| Building alarm inputs | 5 (galvanic isolated) |
| Input characteristics | |
| Voltage | 480V standard; and 400V available |
| Voltage range | +10% / -15% |
| Frequency range | 45-65 Hz |
| Power factor | 0.99 (minimum) |
| Input current distortion | <3.5% (no input filter required) |
| Soft start capability | Yes |
| Internal backfeed protection | Yes |
| Output characteristics | |
| Voltage | 480V standard; and 400V available |
| Regulation | ±1% |
| Inverter | PWM with IGBT switching |
| Voltage | THD <2% (100% linear load); <5% (non-linear load) |
| Load power factor range | Up to a .9 power factor leading without derating |
| Overload | 110% for 10 minutes, 125% for 2 minutes, 150% for 15 seconds |
| Battery | |
| Battery types | VRLA, AGM, wet cell |
| Battery voltage | 480V |
| Temperature compensation | Optional |
| Charging method | ABM technology or float, selectable |
| Dimensions and weights | |
| 225 kVA, 275 kVA |
52.4”w x 32.7”d x 73.6”h (1786 lb) |
| 225 kVA redundant, 275 kVA redundant | 73.7”w x 32.7”d x 73.6”h (2875 lb) |
| 450, 500, 550 kVA | 73.7”w x 32.7”d x 73.6”h (2977 lb) |
| 450, 550 kVA redundant | 103”w x 32.7”d x 73.6”h (4153 lb) |
| Field upgrade module, 225 or 275 kVA | 30”w x 32.7”d x 73.6”h (1176 lb) |
| 650, 750, 825 kVA | 140.9"w x 32.7"d x 73.7"h (5065 lb) |
| 650, 750, 825 kVA +1 redundant | 170.2"w x 32.7"d x 73.7"h (6365 lb) |
| 1000, 1100 kVA | 170.2"w x 32.7"d x 73.7"h (6525 lb) |
| Certifications | |
| Safety | UL1778, cUL |
| EMC | IEC 62040-2, EN50091 Class A (restricted access) |
| Options |
|
| Communication cards | Four communication bays standard. The following connectivity options can be installed at any time:
|
Remote inputs/outputs: Five building alarm inputs and one summary alarm contact (5A @ 120V) standard Remote monitor panel: Eight backlit status indicator lamps plus an audible horn |
|
| Software compatibility |
|
| Dimensions | 480V weight | 400V weight | |
|---|---|---|---|
| 200, 250, 275, 300 kW | 52.5”w x 34.4”d x 74”h | 2150 lb (975 kg) | 1886 lb (857 kg) |
| 200-300 kW redundant | 73.8”w x 34.4”d x 74”h | 3184 lb (1447 kg) | N/A |
| Field upgrade module, 300 kW | 29”w x 34.4”d x 74”h | 1037 lb (470 kg) | 1047 lb (475 kg) |
| 400, 500, 550, 600 kW | 73.8”w x 34.4”d x 74”h | 3184 lb (1447 kg) | 3184 lb (1447 kg) |
| 400-600 kW redundant | 103”w x 34.4”d x 74”h | 4221 lb (1918 kg) | N/A |
| 675, 750, 825, 900 kW | 141”w x 34.4d x 74”h | 5236 lb (2375 kg) | 5236 lb (2375 kg) |
| 675, 750, 825, 900 kW +1 redundant | 170.1w x 34.4d x 74”h | 6523 lb (2959 kg) | N/A |
| 1000, 1100, 1200 kW | 170.1w x 34.4d x 74”h | 6523 lb (2959 kg) | 6620 lb (3003 kg) |
| Dimensions | 600V Weight | |
|---|---|---|
| 200, 225, 250, 275 kW/kVA | 102.9”w x 34.4”d x 74”h | 4354 lb (1975 kg) |
| 200–275 kW/kVA +1 redundant | 126.2”w x 34.4”d x 74”h | 5683 lb (2578 kg) |
| 300 kW/kVA | 126.2”w x 34.4”d x 74”h | 5683 lb (2378 kg) |
| Field upgrade module | 29”w x 34.4”d x 74”h | 1037 lb (471 kg) |
| 400, 450, 500, 550 kW/kVA | 126.2”w x 34.4”d x 74”h | 5683 lb (2578 kg) |
| 400–550 kW/kVA +1 redundant | 155.2”w x 34.4”d x 74”h | 6722 lb (3049 kg) |
| 675, 750, 825 kW/kVA | 195”w x 34.4”d x 74”h | 10050 lb (4559 kg) |
| 675, 750, 825 kW/kVA +1 redundant | 224”w x 34.4”d x 74”h | 11550 lb (5239 kg) |
| 1000,1100 kW/kVA | 224”w x 34.4”d x 74”h | 11550 lb (5239 kg) |
| Field upgrade module, 275 kW/kVA | 29”w x 34.4”d x 74”h | 1037 lb (470 kg) |
