Eaton's HMI/SCADA solution provides cost-effective and secure control, data visualization and alarm management capabilities for utility automation systems. Visual T&D software is one of Eaton's grid automation system solutions.

Contact me about this product

Overview Technical Resources

Scalable

Scalable, cost-effective system solution

Secure

Secure local and remote access and control

Integrated

Seamless system integration and improved productivity

Core features

Flexible licensing model adapts to the large number of data points in modern IEDs
Supports a large variety of data sources like SMP Gateways, industry-standard OPC servers
Millisecond time-tagging and data quality attributes
Client/Server architecture with optimized support for low-bandwidth networks
Support server redundancy for continued error-free operation
Individual user accounts with granular access permissions
Access a large variety of devices with the optional Communication Server module, using standard or proprietary protocols

Designed for the most challenging automation projects

For large applications, Eaton’s Visual T&D software is a cost-effective, PC-based solution for control, data logging, visualization and alarm management perfectly suited for applications that require more capabilities than the SMP Gateway integrated HMI.

Visual T&D software reduces engineering, maintenance and commissioning efforts

As a standalone HMI, or as a companion product to Eaton’s SMP Gateway, Visual T&D software integrates seamlessly in the automation system environment to provide immediate access to your data.

Visual T&D advanced features

Data visualization and control

Get immediate access to all data points, in real-time, in a variety of formats, with minimum configuration effort

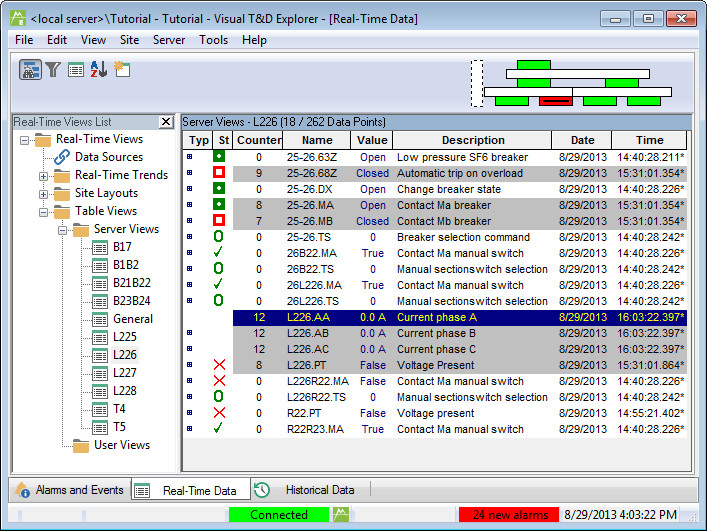

User-defined tabular views with filtering, sorting, transition counters, and highlighting of changed values
User-defined trending views
Simplify engineering and commissioning by performing control operations directly from real-time data views. Supports power industry Direct Execute or Select Before Operate (SBO) control modes
Point tagging for operation lock-out, or informational purposes

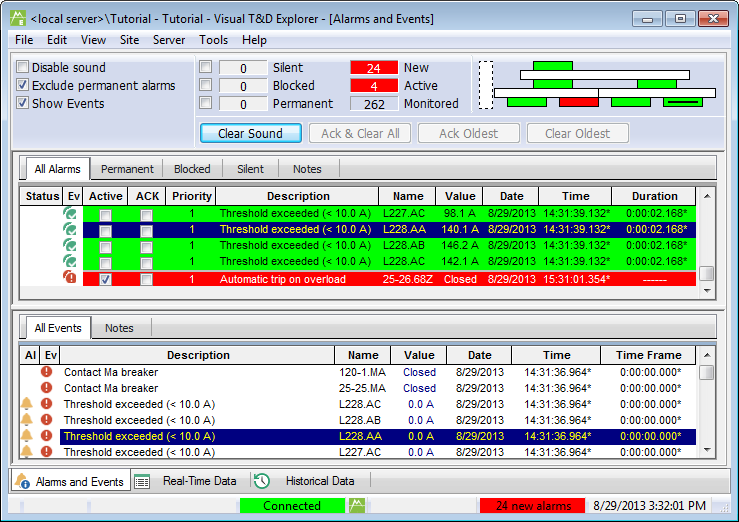

Alarm and event management

Trigger alarm or event on a binary point change, or when an analog value moves out of its operational range.
Built-in system alarms on loss of data source, time synchronization or data quality.
Configurable alarm management process
Trigger email notifications by appearance, disappearance or acknowledgement of a condition

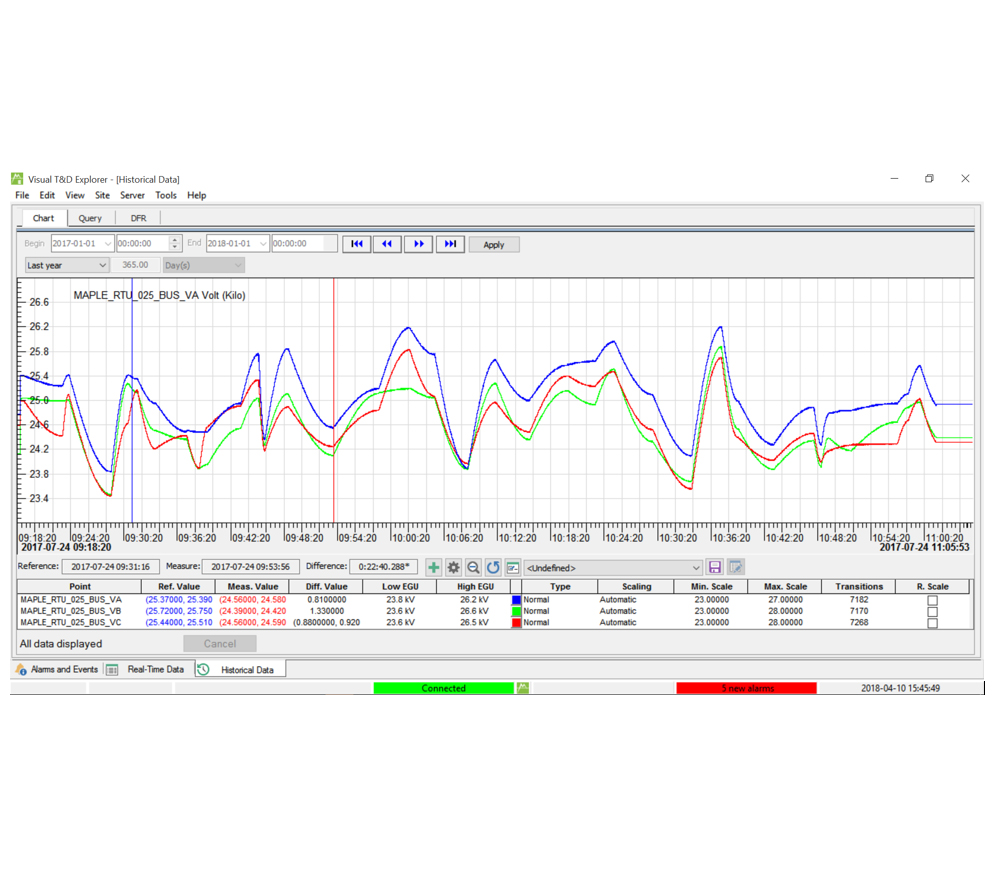

Data logging

Log all events, alarms, operator actions and all transitions on all data points
Select points to log and set up time or value-based deadbands to optimize data storage requirements
Support industry-proven PostgreSQL and Microsoft SQL Server databases as data historians
Field-proven performance with up to 100K data points and up to 10K sustained transitions per second
Retrieve, store, and display fault records from DFRs and protection relays

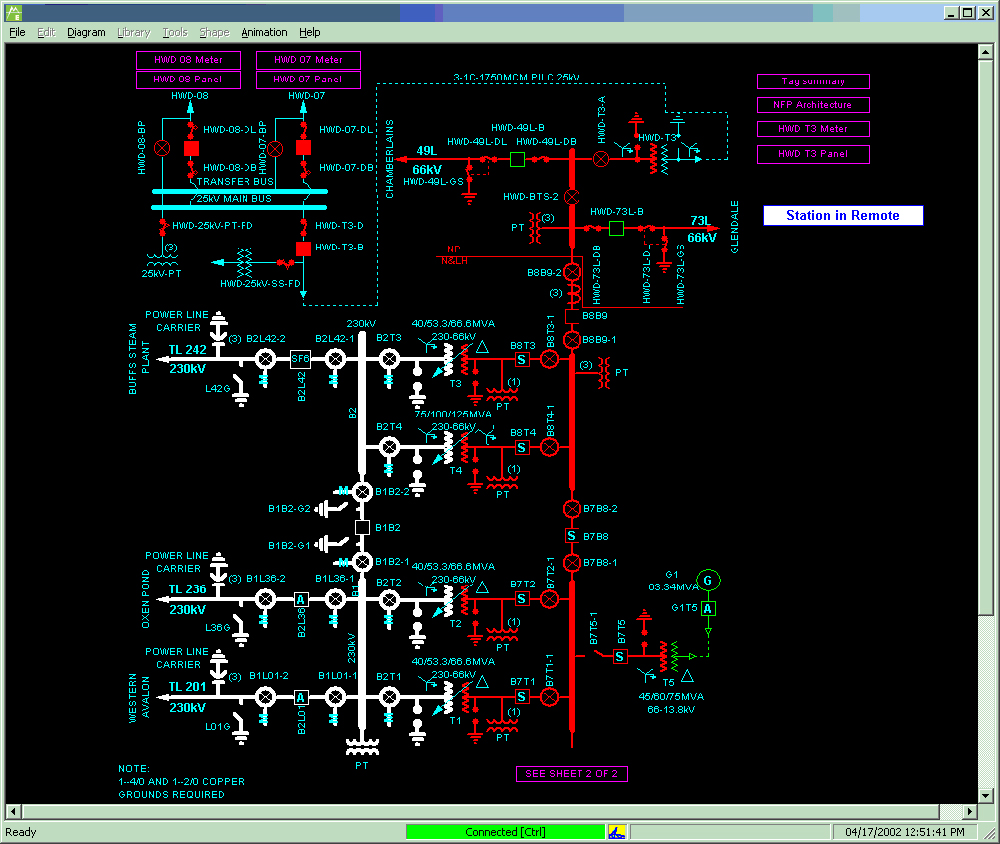

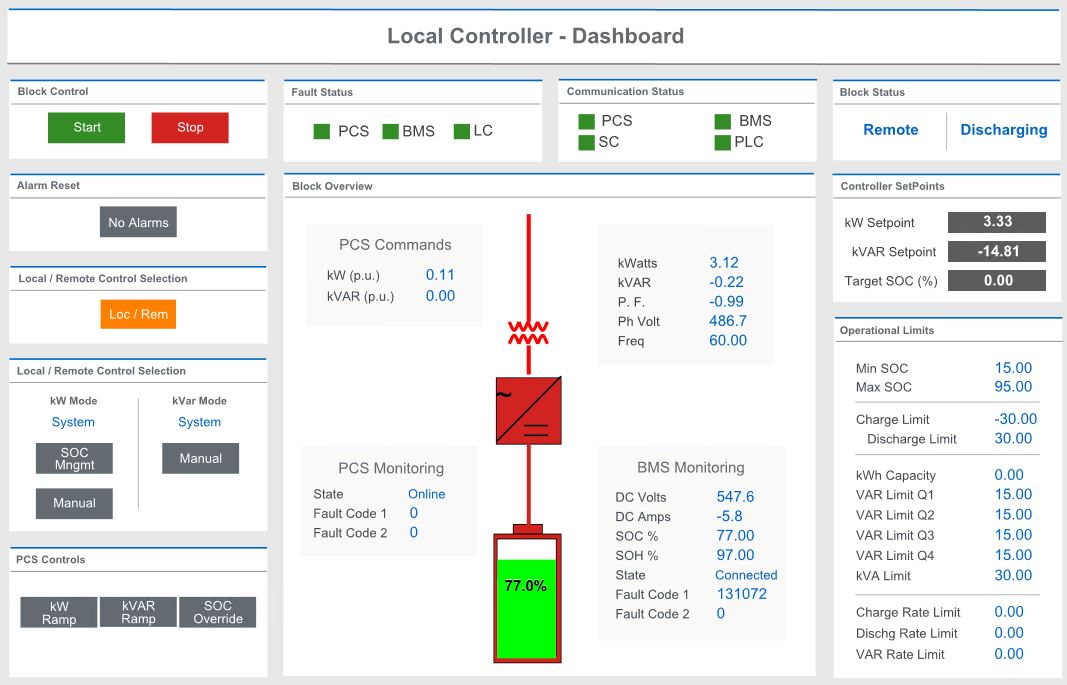

Single-line diagrams

Complete set of standard drawing tools
Create complex shapes by grouping simple shapes
Import pictures and bitmaps
Power industry shape libraries to simplify diagram creation
Alias Resolution feature for automatic point mapping

Specifications

Visual T&D system requirements

Windows operating systems	Windows 10 or 11, Windows Server 2016, 2019 or 2022
Minimum processor requirement	Intel Pentium, 2.8 GHz
Minimum RAM	4 GB
Disk space	250 GB
Database requirements	PostgreSQL 13.x to 18.x Microsoft SQL Server 2016, 2017, 2019 or 2022
Additional requirements	MS Excel Add-in 2007 and 2010 32-bit
